AMXRacing Multicharger AMC60

AMXRacing Multicharger AMC60

Small, powerful, top class entry-level charger for the following battery types: Li-Po, Li-Fe, Li-Ion / Li-HV batteries cells 2-4, NiCd/NiMH batteries cells 6-8 and 6-12V lead batteries cells 3-6. The charger also has 10 memory locations for battery profiles and a 220V power connection for convenient and fast charging at home.

Features:
Memory space for up to 10 different battery profiles
220V power connection
Intuitive control menu
Temperature sensor (sensor optional)
Integrated battery tester (Batt Meter) for individual cell voltage, total voltage and cell drift
Integrated tester for the internal resistance of the batteries (Batt Resistance)

Technical data:
Input voltage: 100-240V AC
Charging power: 60W
Discharge power: 10W
Charging current: 0.1-6.0A
Discharge current: 0.1-2.0A
Balance current: 200mA/cell
Battery types: Li-Po, Li-Fe, Li-Ion/Li-HV batteries cells 2-4
NiCd/NiMH batteries cells 6-8
Lead-acid battery: 6-12V (3-6 cells)
Memory profiles: 10
Weight: 350g
Length: 115mm
Width: 95mm
Height: 50mm

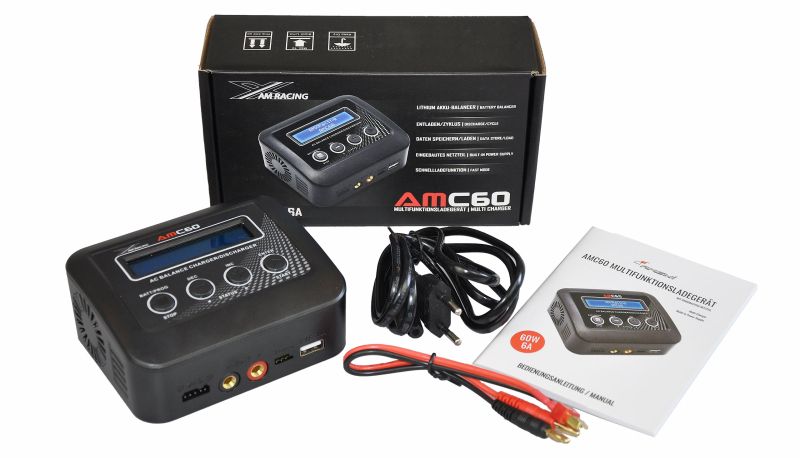

Scope of delivery:
Charger
Power cable
Charging cable with Deans / T-plug
Manual DE/EN
