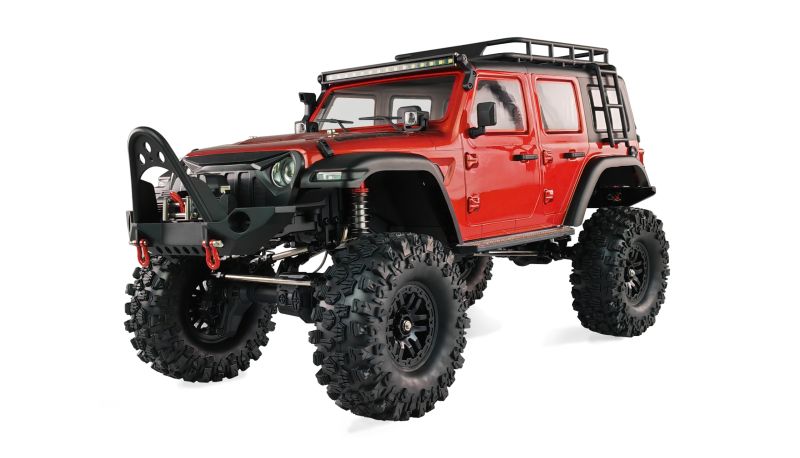

AMXRock Crosstrail Crawler 4WD 1/10 ARTR red metallic

Experience boundless adventures with a true off-road champion - the AMXRock Crosstrail Crawler in 1/10th scale not only looks impressive thanks to special paint and many scale attachments, but also has everything it takes to master the most demanding off-road missions.



The Hobbywing WP-1060 60A brushed speed controller with mountain break ensures precise steering and full control, even in the most difficult conditions. Whether you're squeezing through narrow canyons or climbing steep cliffs, this crawler obeys your commands to the letter. With specially designed shock absorbers, you'll glide effortlessly over any obstacle. Stony terrain, bumpy paths and sandy hills - nothing can stop you. The portal axles with metal gears and CVD drive shafts provide increased ground clearance, while the 2-speed transmission and individual differential locks ensure optimum climbing performance.



The enclosed receiver box protects against water and dirt, so you can drive your AMXRock through puddles and mud with equal peace of mind. And then there's the controllable high-torque winch at the front - your lifeline in a pinch. You can rescue other vehicles from difficult situations or yourself from dicey situations.



Available as an ARTR (Almost Ready to Run) version, the scope of delivery already includes a modern 2.4 GHz, 6-channel remote control in addition to the vehicle. The large battery compartment offers you the option of using batteries with 6000-7000mAh - so your off-road fun can be designed flexibly according to your preferences.

Highlights:
Hobbywing WP-1060 60A brushed speed controller with Mountainbreak: Best crawler control for precise manoeuvring, full control at all times even at the highest demands
Specially developed shock absorbers: Provide more effective compensation for all bumps on the track and withstand all off-road loads
Closed receiver box: Reliable protection against water and dirt, so driving through puddles or mud is no problem at all - nothing stands in the way of even the most demanding operations
Portal axles with metal gears and CVD drive shafts: For more ground clearance and more power development at the wheels - even better off-road characteristics of the vehicle with simultaneous durability of the drive components
2-speed transmission and individual differential locks: Both functions can be controlled separately from the transmitter, for even better climbing characteristics in particularly rough terrain

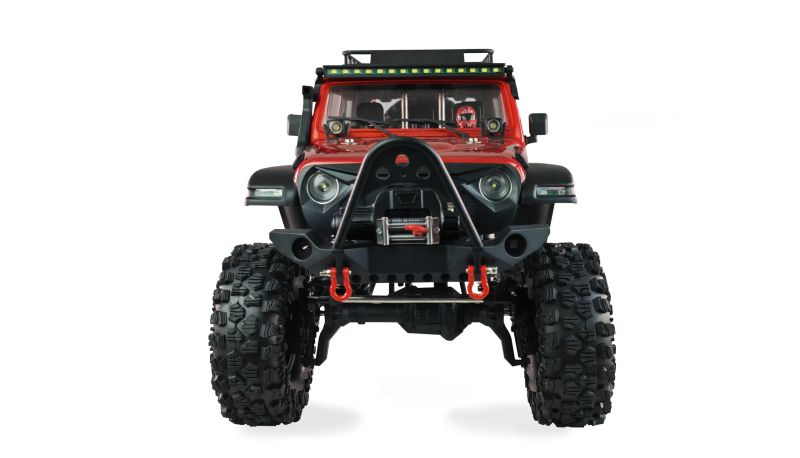

Controllable high-torque cable winch at the front: Fully functional for safely mastering steep climbs or freeing other vehicles from difficult positions

Further features:
Many scale attachments such as door handles, roof rack, exterior mirrors, access ladders and tools ready mounted on the rear rack.
LED lighting front/rear incl. turn signals, on the bonnet and roof light functionally installed
Bonnet equipped with folding mechanism and magnetic holders, eliminating the need for annoying body splints and enabling quick battery changes etc.

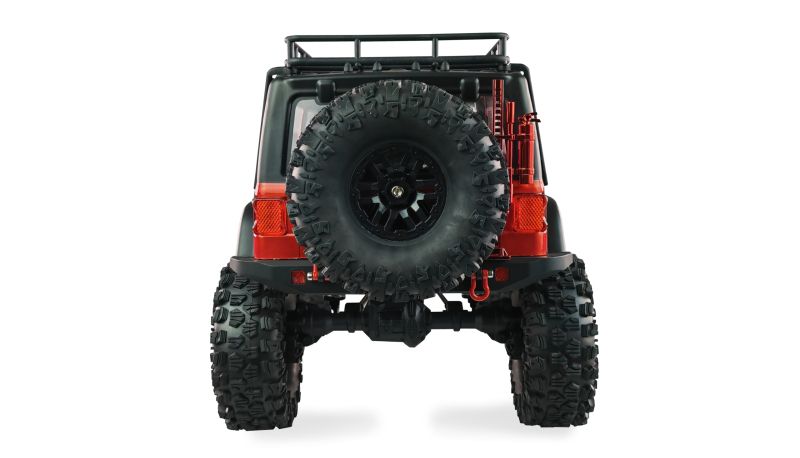

Towing hooks and shackles as well as a full-size spare wheel are ready mounted on the frame and bodywork

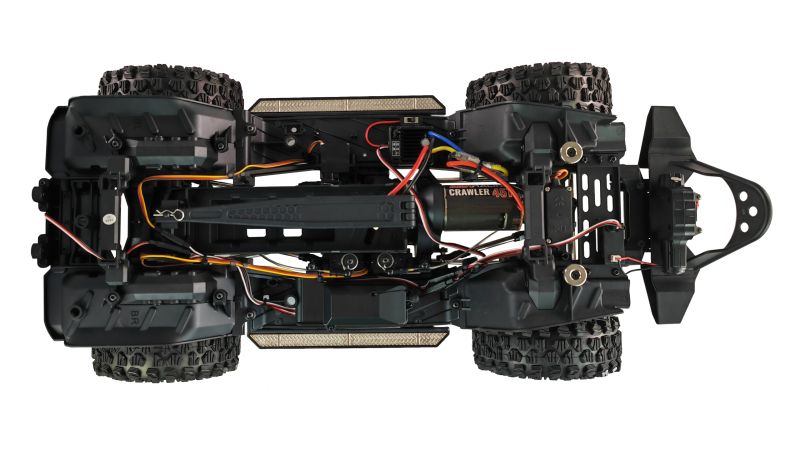

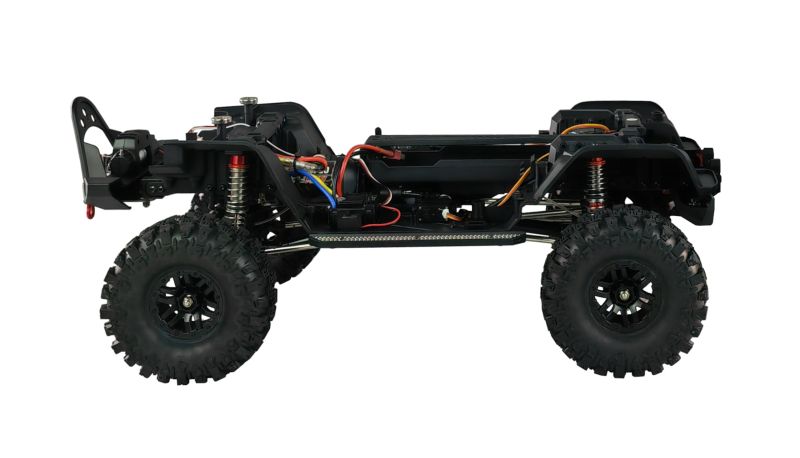

Solid aluminium frame
Differentials made of metal
Drive shafts as telescopic shafts for unrestricted freedom of movement and permanent drive in all areas of crawling (interlocking of the axles in rough terrain)
Large battery compartment incl. fuse, so that batteries with e.g. 6000-7000mAh can also be used

Technical data:
Scale: 1:10
Length: 568mm
Width: 250mm
Height: 272mm
Weight: 3397g without battery
Wheelbase: 313mm
Track width front: 202mm
Track width rear: 202mm
Ground clearance: 55mm
Front wheels: outer diameter/width 118/45mm
Rear wheels: outer diameter/width 118/45mm
Rim diameter: 51mm
Gearbox: 2-speed metal gearbox
Gear ratio 1st gear: 25,85:1
Gear ratio 2nd gear: 64,6:1
Front shock absorber: 90mm aluminium oil shock absorber with knurled screws
Rear shock: 90mm aluminium oil-pressure shock absorber with knurled screws
Brake: Electronic, Mountainbreak (Note: rear jumper on controller must be removed to activate Mountainbreak)
ESC: Hobbywing WP1060 60A Brushed
Motor: 540 Brushed 45T
Drive system: Cardan
Steering servo: Standard MG 25kg
Main material: Plastic
Battery compartment dimensions: 160x45x25mm
Drive time: Depending on the capacity of the selected battery, up to 120 minutes
Top speed: approx. 15km/h in second gear
Remote control: 6 channels, 2,4GH
Range: approx. 100 metres

Scope of delivery:
Model
Remote control
Various accessories
Manual DE/EN

Required accessories:
4x AAA micro batteries for the remote control
NiMh 7.2V or LiPo 7.4V rechargeable battery, recommended from 3000mAh Deans connection
Suitable battery charger
