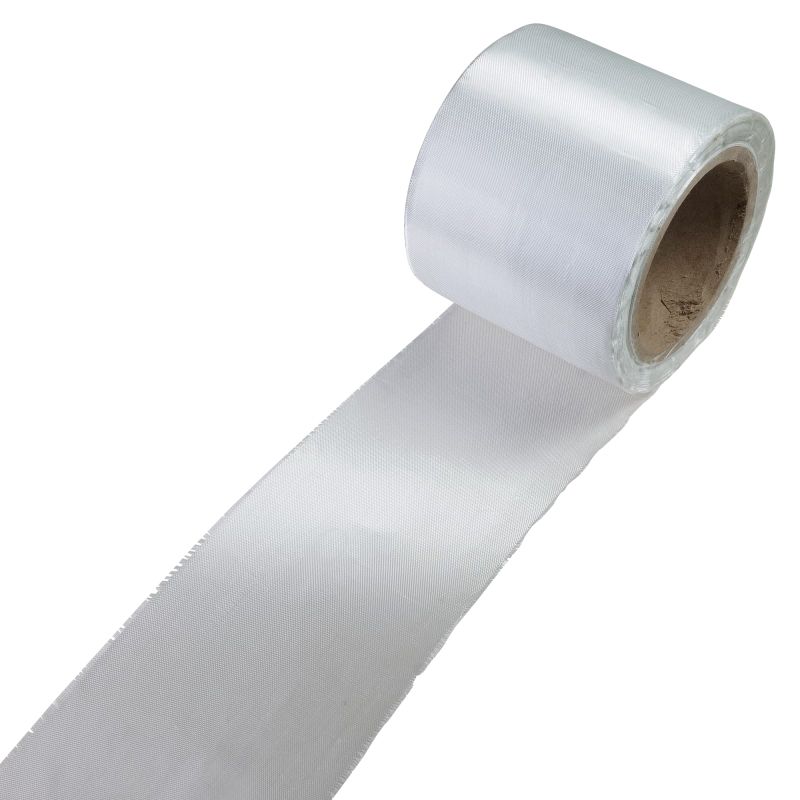

Glass fabric tape 49 g/m² (Interglas 02037, finish FE 800, PW), width 5 cm/100см
Price:
€1.00
Glass fabric tape 49 g/m² (Interglas 02037, finish FE 800, PW), width 5 cm/100см
Glass fabric tape 49 g/m² (Interglas 02037, finish FE 800, PW), width 5 cm
USA: width 1.97", weight 1.4 oz/yd²
Fabric tape, cut from the original roll. Cut edges, not woven.
Interglas 02037 / Finish FE 800
Plain weave
Yarn (tex):
Warp: EC 5 - 11
Weft: EC 5 - 11
Setting (thr./cm):
Warp: 23.7
Weft: 18.5
Width: 5 cm
Application:
Wood facing/woodgrain foil (wing linings), honeycomb sandwich components, PCBs
Residual tensile strength of glass fabric tapes/glass fabrics made of E-glass after 24 hours of storage at:
| Temperature | Residual tensile strength |
| 200 °C | 98 % |
| 300 °C | 82 % |
| 400 °C | 65 % |
| 500 °C | 46 % |
| 600 °C | 14 % |
| 700 °C | - |
Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 39 g/m², laminate thickness: 0.054 mm, laminate weight: 88 g/m²
