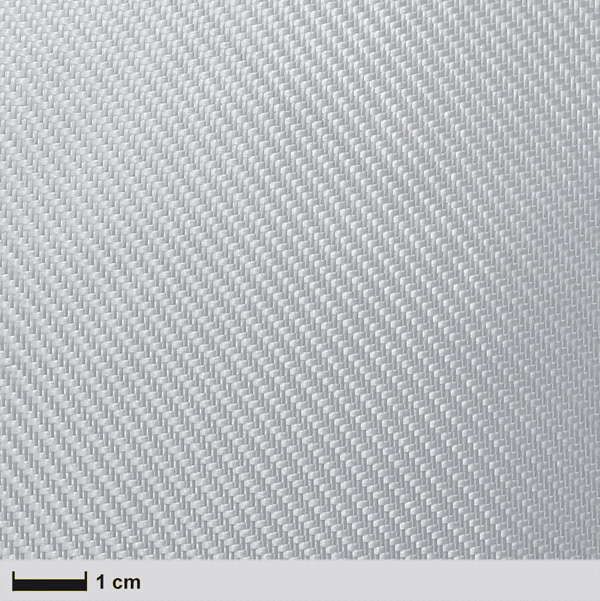

Glass fabric 163 g/m² (Interglas 92110, aero, twill weave), width 100 cm
Glass fabric 163 g/m² (Interglas 92110, aero, twill weave), width 100 cm
Glass fabric 163 g/m² (Interglas 92110, aero, twill weave), width 100 cm
USA: width 39.37", weight 4.8 oz/yd²
Interglas 92110 / Finish FK 144 (WLB Nr. 8.4548.60)
Material as per aviation standards
Twill weave
Yarn (tex):
Warp: EC 9 -68
Weft: EC 9 -68
Setting (thr./cm):
Warp: 12.0
Weft: 11.5
Width: 100 cm
Application:
Frequently used standard fabric in the construction of model hulls, fuselages, and sports equipment, for laying up master patterns, repairs and individual reinforcements. Good drapeability. Very good impregnation, highly transparent.
Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 128 g/m², laminate thickness: 0.179 mm, laminate weight: 291 g/m²
Laminate structures for vehicle construction in combination with this product are approved by the TÜV-Süd. You will find the specified requirements on the R&G website.
