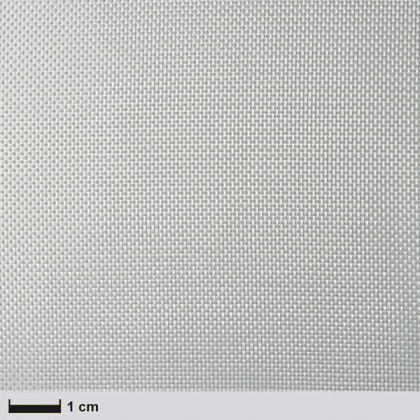

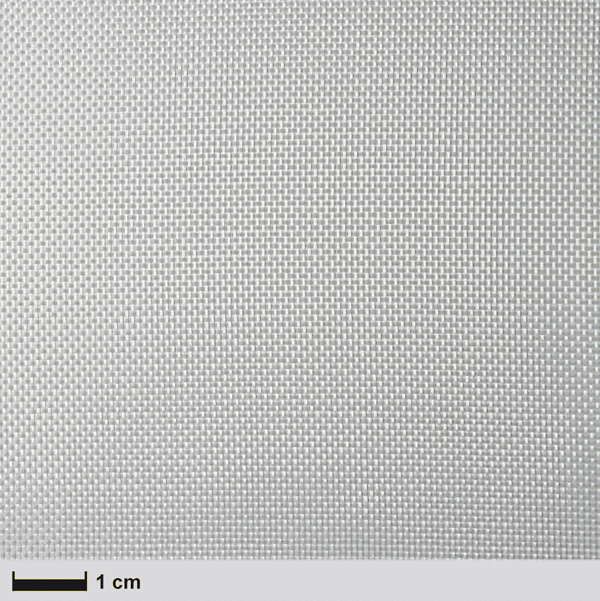

Glass fabric 80 g/m² (Finish FK 144, aero, plain weave), width 103 cm/1м
Price:
€7.90
Glass fabric 80 g/m² (Finish FK 144, aero, plain weave), width 103 cm
Glass fabric 80 g/m² (Finish FK 144, aero, plain weave), width 103 cm
USA: width 39.37", weight 2.8 oz/yd²
International style 1610 (former Interglas 90070) / Finish FK 144
Material as per aviation standards
Plain weave
Yarn (tex):
Warp: EC 9 - 34
Weft: EC 9 - 34
Setting (thr./cm):
Warp: 12.0
Weft: 11.5
Width: 100 cm
Application:
Sandwich components, linings, smaller GFRP parts and sheets.
Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 63 g/m², laminate thickness: 0.088 mm, laminate weight: 143 g/m²
