Powerful Drive for Demanding Model Building Projects

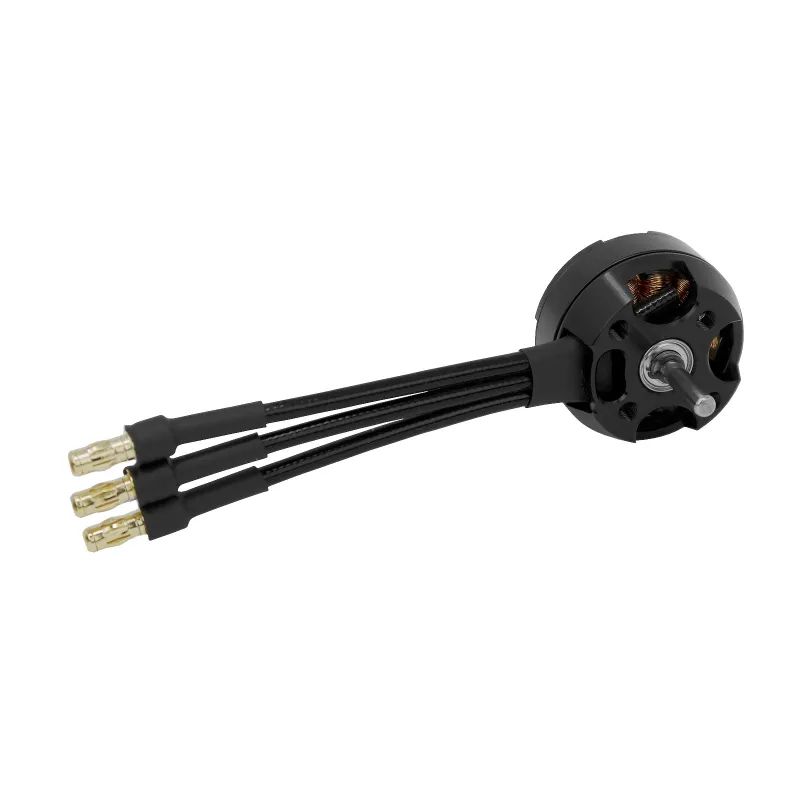

The SPITZ Brushless Motor 2822-25 1,400KV is the perfect choice for demanding model builders and industrial applications. As a 14-pole brushless outrunner, this motor impresses with its excellent performance and reliability. Thanks to the use of a tempered aluminum alloy with magnesium and silicon (6061-T6), the motor offers exceptional durability. The high copper fill factor of the coils contributes to efficient operation, while the sintered neodymium magnets provide high torque.

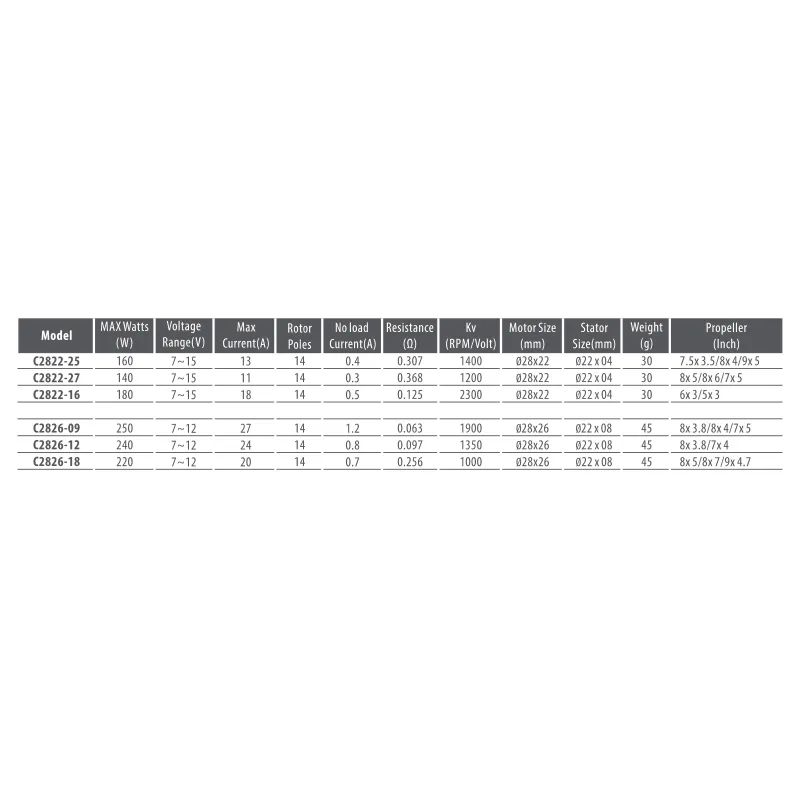

Technical Data and Performance Features

• Max. Power: 160 W
• Voltage Range: 7-15 V
• Max. Current: 13 A
• No-load Current: 0.4 A
• Resistance: 0.307 Ω
• KV (RPM per Volt): 1,400 RPM/V
• Motor Weight: 30 g

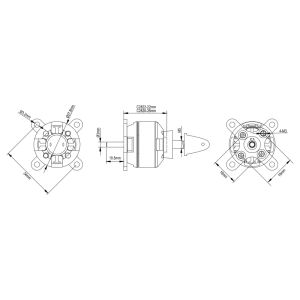

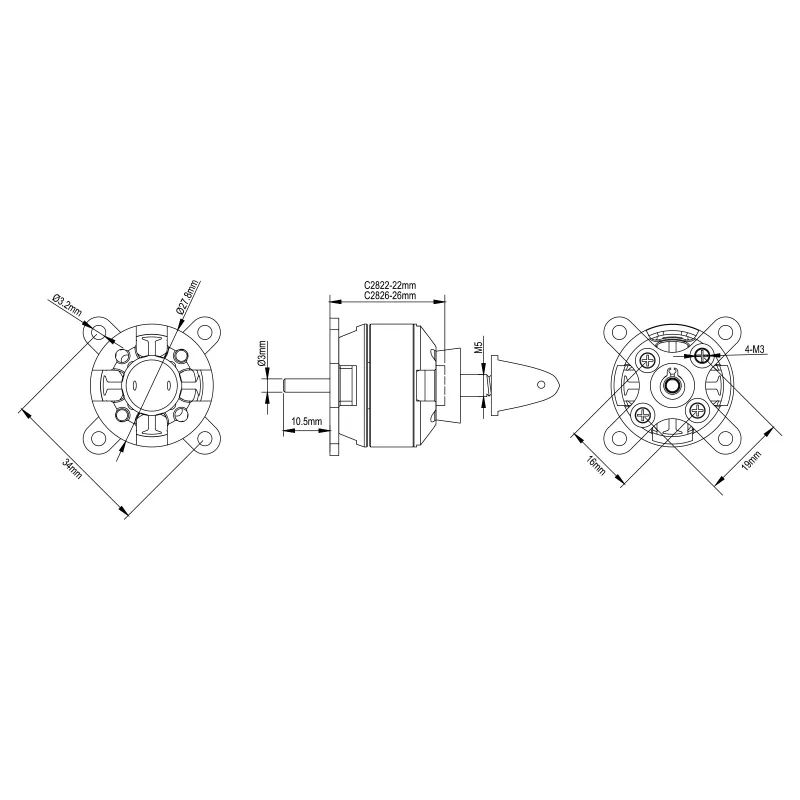

• Motor Size: ø 28 x 22 mm
• Stator Size: ø 22 x 4 mm
• Recommended Propellers: 7.5 x 3.5", 8 x 4", 9 x 5"

Robust and Durable Construction

The SPITZ Brushless Motor 2822-25 1,400KV is made from a tempered aluminum alloy (6061-T6) known for its strength and durability. This ensures a long service life and high resistance to mechanical stress. The motor boasts high efficiency due to the high copper fill factor of the coils. The strong sintered neodymium magnets provide high torque and excellent performance. The motor is equipped with precision ball bearings designed for high speeds, and the robust drive shafts further enhance the motor's reliability and performance.

Versatile Accessories for Easy Installation

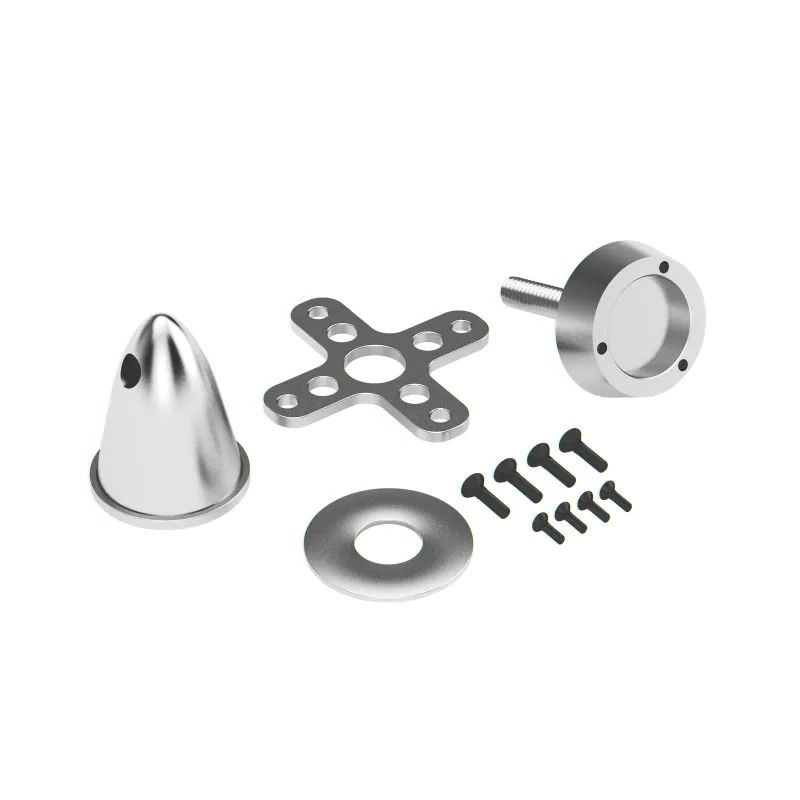

The SPITZ Brushless Motor 2822-25 1,400KV comes with high-quality mounting hardware and essential accessories, including a spinner, motor mount, and propeller adapter, ensuring easy and secure installation in your model aircraft. The included mounting materials, including a back mount, make installation simple and quick.

Perfect for Versatile Applications in Model Building and Industry

With its outstanding technical properties and comprehensive accessories, the SPITZ Brushless Motor 2822-25 1,400KV is ideal for a wide range of applications in model building and industry. Its high flexibility and performance make this motor the optimal choice for those seeking reliability and efficiency. Whether for model airplanes, drones, or multicopters, this motor offers the perfect combination of power and precision.

Areas of Application

• Model Airplanes
• Drones and Multicopters
• Helicopters
• Industrial Applications
• Automation Technology
• Robotics
