• Yields lightweight, hard filling compounds
• For epoxy, polyester, and vinyl ester resins

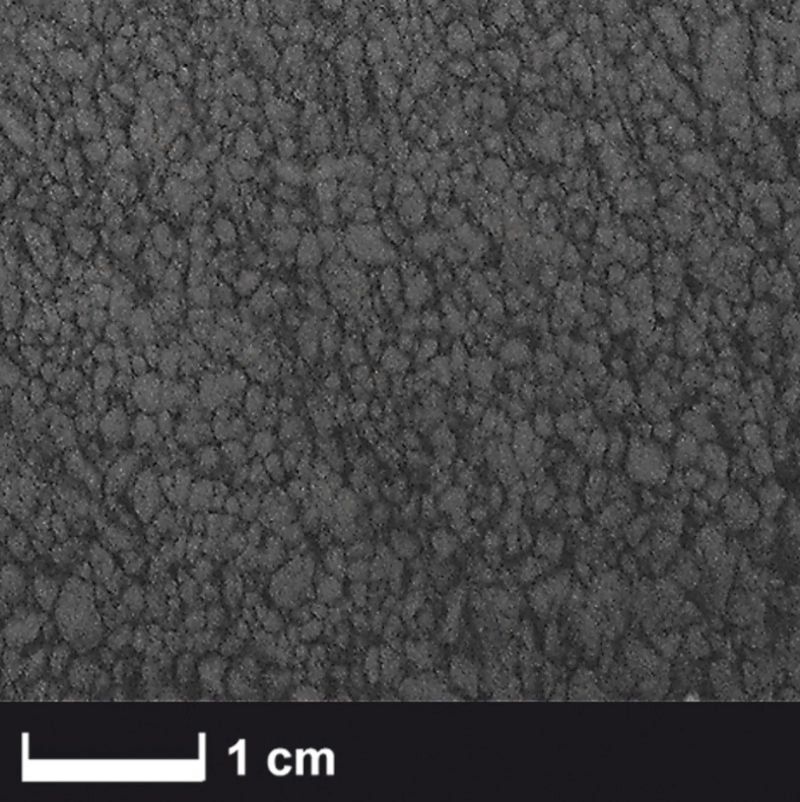

Milled carbon is made from recycled fibres. The carbon fibres used therefore are equipped largely with PU-sizing. Most of the sizing evaporates due heat generated at the milling process though. When dry the milled fibres form fibre balls, which dissolve and spread out evenly in resin.

Technical Data*:
Carbon fibres content: 100 % (99 %)
including ex-PAN fibres: > 90 %
Carbon content: 94 % (92 %)
Density (g/m³): 1.7 < d < 2.0
Monofilament diameter: 7 µm ± 2
Volume resistivity (average volume resistivity of n (n > 1000) monofilaments): 15 µΩm (max. 20)
Tensile strength: 3500 MPa (3000)
Elongation at break: 1.5 % (1,2)
Tensile modulus: 230 GPa
Median length: 200 µm ± 30

Application:
Manufacture of electrically conductive coatings and adhesives, reinforcement of moulding and fillings.
