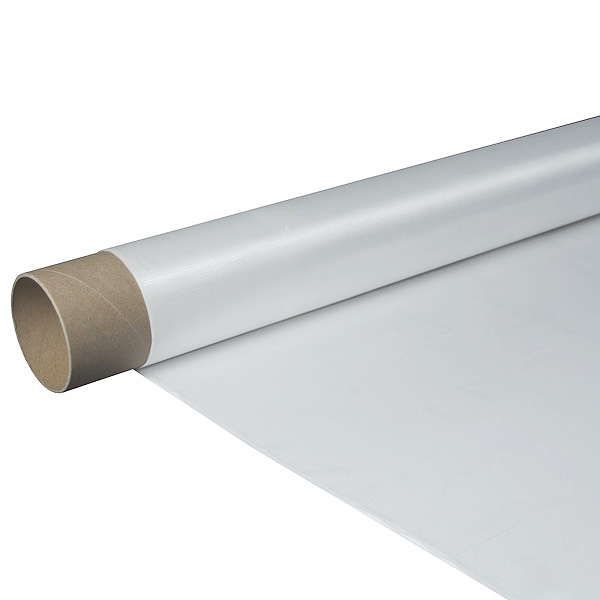

Glass fabric 25 g/m² (FE 600/800, plain weave) 110 cm, pack (folded)/ 2 m
Price:
€25.14
Glass fabric 25 g/m² (FE 600/800, plain weave) 110 cm, pack (folded)/ 2 m
Glass fabric 25 g/m² (Finish FE 800, plain weave), width 110 cm
USA: width 43.31", weight 0.7 oz/yd²
International style 106 (former Interglas 02034) / Finish FE 800

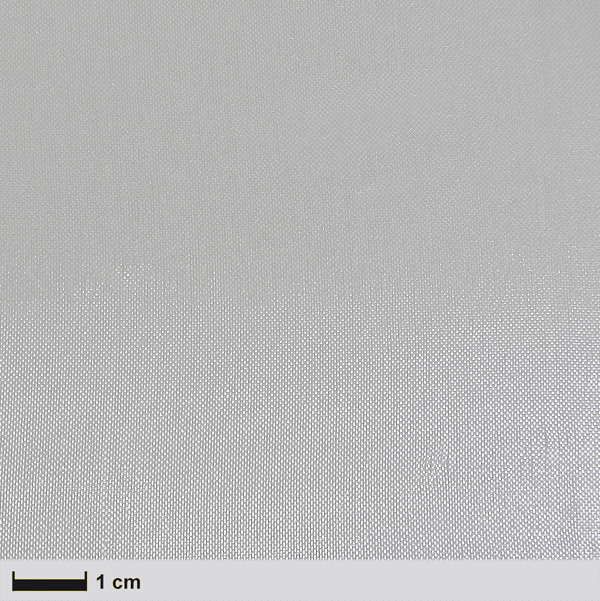

Plain weave
Yarn (tex):
Warp: EC 5 - 5.5
Weft: EC 5 - 5.5
Setting (thr./cm):
Warp: 22.0
Weft: 22.0
Width: 110 cm
Application:
Wood facing/woodgrain foil (wing linings), honeycomb sandwich components (minimum 2 layers), PCBs
Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 20 g/m², laminate thickness: 0.027 mm, laminate weight: 45 g/m²
